Country: China - Power Cords

China AC Power Cords, AC Power Supply Cords
CH1-10P, GB 2099.1, GB 1002, Type I Plug
10 Amp 250 Volt, 2 Pole 3 Wire Grounding

General Specification Data: China Power Cords, Type I Plug

Plug StandardGB 2099.1-1996, GB 1002-1996 Type I Plug
Connector StandardsGB 17465.1-1998, IEC 60320 (320) C-13, C-19, C-5, C-7, C-15, Unterminated
Cordage StandardsGB 5023.5-1997, RVV, RVB, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant

Additional Power Cords Notes: China Type I power cords are black as standard color. China power cords in white or gray are special order. Custom length and shielded China power cords available. Terminated, custom stripping, hanked China cords available. IEC 60320 C-15 120⁰C connector available on some China power cords.

China AC Power Cords

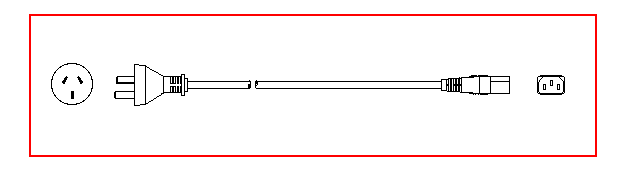

China Detachable Power Cord Sets
GB 2099.1, GB 1002 Type I Plug,
IEC 60320 Straight C-13 Connector
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLengthView
84661 10A 250VStraight C-13 connector2.5 m Approvals
& Drawing
84661X3.1M 10A 250VStraight C-13 connector3.1 M Approvals
& Drawing
Cordage - RVV 1.0 mm
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

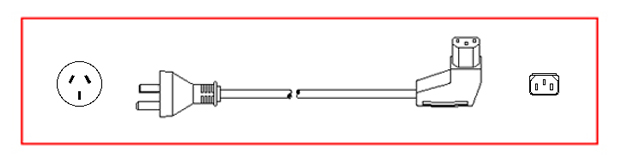

China Detachable Power Cord Sets
GB 2099.1, GB 1002 Type I Plug,
IEC 60320 Left-Angle C-13 Connector
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLengthView
84661-LA 10A 250VLeft-Angle C-13 connector2.5 m Approvals
& Drawing
Cordage - RVV 1.0 mm
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

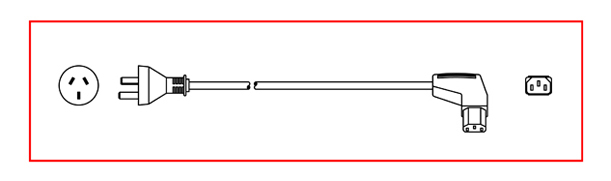

China Detachable Power Cord Sets
GB 2099.1, GB 1002 Type I Plug,
IEC 60320 Right-Angle C-13 Connector
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLengthView
84661-RA 10A 250VRight-Angle C-13 connector2.5 M Approvals
& Drawing
Cordage - RVV 1.0 mm
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

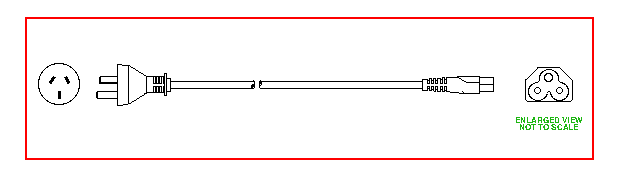

China Detachable Power Cord Sets
GB 2099.1, GB 1002 Type I Plug,
IEC 60320 Straight C-5 Connector
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLengthView
84295 2.5A 250VStraight C-5 connector1.8 m Approvals
& Drawing
Cordage - RVV 1.0 mm
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-5

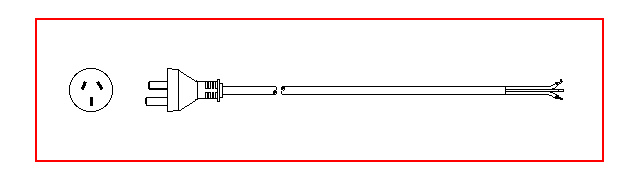

China Power Supply Cords
GB 2099.1, GB 1002 Type I Plug, Unterminated Cord End
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLengthView
8464010A 250VStraight plug/1.0 mm2.5 m Approvals
& Drawing
Cordage - RVV
                 China Power Cords, Type I Plug
  CH1-10P       "CE" Mark       Unterminated
     China detachable power cords and power supply cords supplied by International Configurations, Inc. meets China specific standards and current REACH and RoHS requirements. Type I terminology, indicated above for China power cord plugs, is an alphabetical letter classification coding system used primarily for quickly identifying the electrical configuration of plugs, receptacles and power cords sets used in China.

     International Configurations, Inc. stocks and distributes electrical devices for use in China and all Countries in the world. Our extensive and complete China product line includes power receptacle outlets, RCD GFCI receptacle outlets, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, light fixtures, MCB circuit breakers, electrical panels, power cable wire, plug adapters and transformers. Contact us for China electrical devices and power cords.
