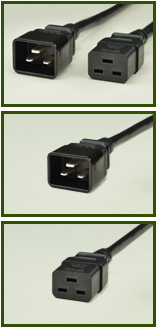

IEC 60320 C-19 & C-20 Universal Approved

   15/16 Amp 250 Volt, 2 Pole 3 Wire Grounding
UL, C-UL, CSA, VDE Approved. (Universal) CE Mark

General Specification Data

Plug StandardIEC 60320 (320) C-20
Connector StandardsIEC 60320 (320) C-19
Cordage StandardsSJTO, H05VV-F3G, 105 C
Conductor Size / Rating14/3 AWG @ 15 Ampere, 1.5 mm @ 16 Ampere
MaterialPVC, Jacket Color Black
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire)
Jacket O.D. (Approx.)1.5 mm = .350'
Substances ComplianceREACH, RoHS Compliant

Additional Notes: Black standard color. Custom lengths are available. Various terminals, custom stripping, hanked cords available. Minimum order may apply on some models.
Configuration Options
Related Products
Universal Approved
IEC 60320 C-13, C-14
Power Cords
C-13 to C-14
Powercords
C-14 to
Unterminated
Powercords
C-13 to
Unterminated
Powercords
North American Approved
IEC 60320 C-13, C-14
Power Cords
C-13 to C-14
Powercords
C-14 to
Unterminated
Powercords
C-13 to
Unterminated
Powercords
European Approved
IEC 60320 C-13, C-14
Power Cords
C-13 to C-14
Powercords
C-14 to
Unterminated
Powercords
C-13 to
Unterminated
Powercords
Universal Approved
IEC 60320 C-19, C-20
Power Cords
C-19 to C-20
Powercords
C-20 to
Unterminated
Powercords
C-19 to
Unterminated
Powercords
North American Approved
IEC 60320 C-19, C-20
Power Cords
C-19 to C-20
Powercords
C-20 to
Unterminated
Powercords
C-19 to
Unterminated
Powercords
Combination Configuration Approved Power Cords
IEC 60320 C-5, C-7, C-13,
C-14, C-18, C-19, C-20
C-14 to C-19
Powercords
C-20 to C-13
Powercords
C-14 to C-15
Powercords
C-14 to C-5
Powercords
C-18 to C-7
Powercords
C-7 to
Unterminated
Powercords
C-5 to
Unterminated
Powercords
C-15 to
Unterminated
Powercords
IEC 60309 Power Cords
15A, 20A / 125V Power Cords
30A / 125V Power Cords
10A, 15A, 16A, 20A / 250V Power Cords
30A, 32A / 250V Power Cords
Strain Reliefs
Visit Our Main Website for:
Plugs, Connectors, Outlets, Inlets, Powerstrips, etc.

Power Cord - Detachable Cord Sets
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLengthView

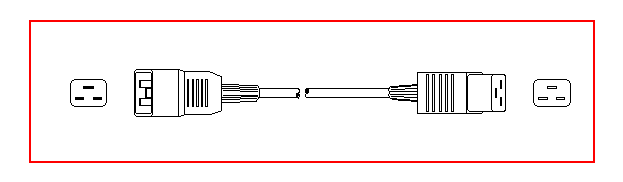

90530 16A 250VC-20 Plug / C-19 connector2.5 m Approvals
& Drawing
90540 16A 250VC-20 Plug / C-19 connector1 m Approvals
& Drawing
90545 16A 250VC-20 Plug / C-19 connector3.1 m Approvals
& Drawing
90545X5M 16A 250VC-20 Plug / C-19 connector5 m Approvals
& Drawing
90540X6FT 16A 250VC-20 Plug / C-19 connector6 Feet Approvals
& Drawing
IEC 60320 C-20           "CE" Mark          IEC 60320 C-19




Power Supply Cords
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLengthView

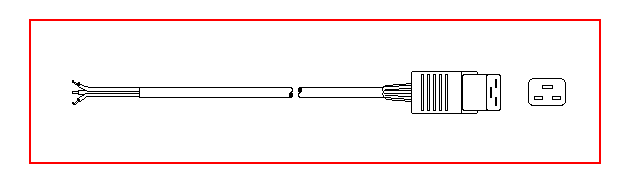

9063016A 250VStraight C-19 connector2.5 m Approvals
& Drawing
9063516A 250VStraight C-19 connector2 m Approvals
& Drawing
9064016A 250VStraight C-19 connector1 m Approvals
& Drawing
9064516A 250VStraight C-19 connector3.1 m Approvals
& Drawing
IEC 60320 C-19           "CE" Mark
Part No.RatingDescription / ConductorsLengthView

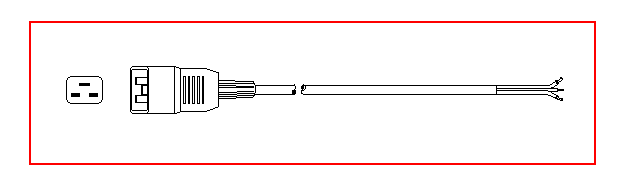

9073016A 250VStraight C-20 plug2.5 m Approvals
& Drawing
9073516A 250VStraight C-20 plug2 m Approvals
& Drawing
9074016A 250VStraight C-20 plug1 m Approvals
& Drawing
9074516A 250VStraight C-20 plug3.1 m Approvals
& Drawing
IEC 60320 C-20           "CE" Mark
