Power Cord Part Number: 81415X12FT

Detachable power cord set with NEMA 5-15 (NEMA 5-15P) plug and straight IEC 60320 (320) C-13 connector. 12 feet long. Cordage is black SJTO, 14/3 AWG (105C). Rated 15 ampere 125 volt. 2 pole 3 wire grounding. Available with shielded cordage, IEC 60320 (320) C-15 120C connector and / or custom length.

All Countries where this part is used:

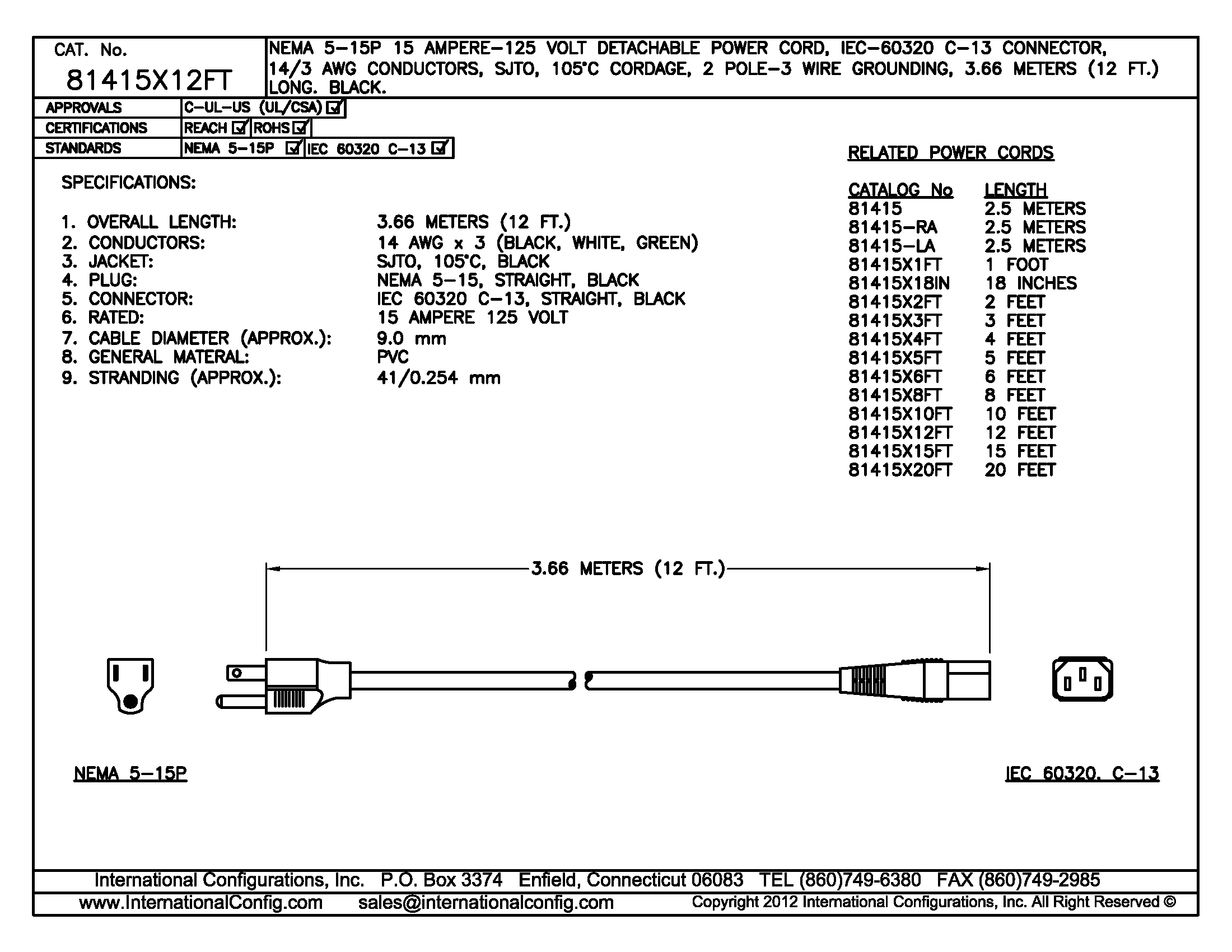

~ Click diagram below to view, print or download a high-resolution PDF print. ~

NEMA 5-15P, Type B Plug
10 Amp, 13 Amp, 15 Amp 125 Volt, 2 Pole 3 Wire Grounding

General Specification Data

Plug StandardNEMA 5-15 Plug, UL 498, CSA, NEMA, ANSI
Connector StandardsIEC 60320 (320) C-13, C-19, C-5, C-7, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW, SVT, SPT
Conductor Size / Rating18 AWG @ 10 Ampere, 16 AWG @ 13 Ampere, 14 AWG @ 15 Ampere
MaterialPVC, Jacket Color Black, Temperature 60C & 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)18 AWG = .31, 16 AWG = .34, 14 AWG = .37
Substances ComplianceREACH, RoHS Compliant

Additional Notes: Black standard color. White and gray available. Custom lengths and shielded cords available. Various terminals, custom stripping, hanked cords available. IEC 60320 C-15 120C type connector available on some models.
