Power Cord Part Number: 88111X10FT
Approvals
Part No: 88111X10FT |
SII
|
Detachable power cord set with Israeli SI 32 (IS1-16P) angle plug and straight IEC 60320 (320) C-13/C-15 connector. C-15 connector is the 120C (notched) type. 10 feet long. Cordage is black H05VV-F3Gx1.0 mm with international conductor color code. Rated 10 ampere 250 volt. 2 pole 3 wire grounding.

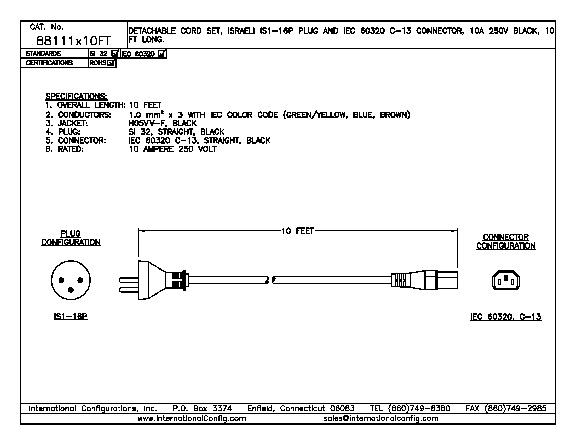

~ Click diagram below to view, print or download a high-resolution PDF print. ~
General Specification Data
 |
|
|
| Plug Standard | SI 32, CEE 7/16 (Non-Polarized) |  |
|---|
| Connector Standards | IEC 60320 (320) C-13, C-19, C-5, C-7, C-15, Unterminated |
|---|
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) |
|---|
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere |
|---|
| Material | PVC, Jacket Color Black, Temperature 70C |
|---|
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) |
|---|
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm |
|---|
| Substances Compliance | REACH, RoHS Compliant |
|---|
|
| Additional Notes: |
Black standard color. White and gray available. Custom lengths and shielded cords available. Various terminals, custom stripping, hanked cords available. IEC 60320 C-15 120C type connector available on some models. |
|
|
