Power Cord Part Number: 89075
Approvals
Part No: 89075 |
CE
DEMKO
|
Detachable power cord set with Danish AST 107 (DE1-13P) straight plug and straight IEC 60320 C-19 connector. 2.5 meters long. Cordage is black H05VV-F3Gx1.5 mm with international conductor color code. Rated 13 ampere 250 volt. 2 pole 3 wire grounding. Available in custom lengths.

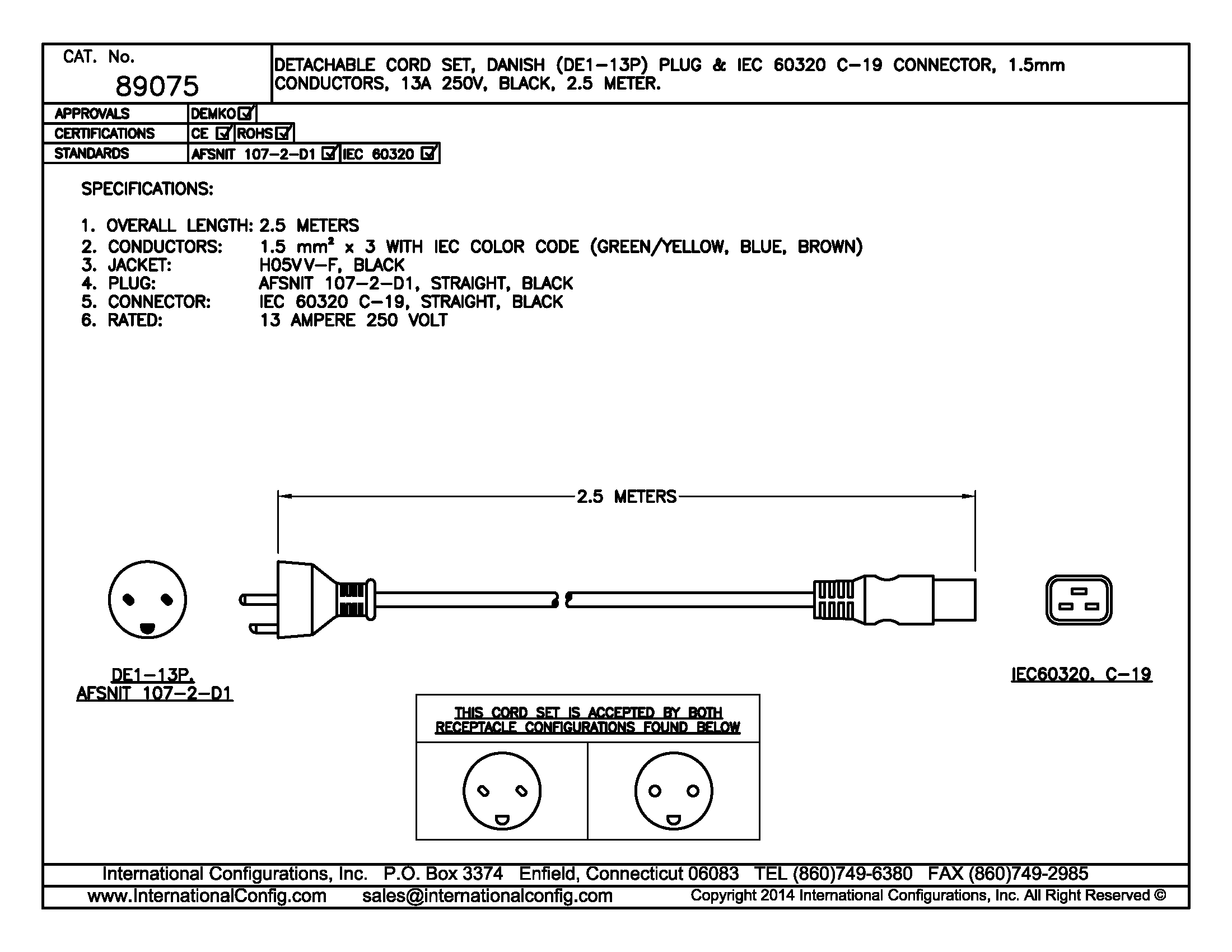

~ Click diagram below to view, print or download a high-resolution PDF print. ~
General Specification Data
 |
|
|
| Plug Standard | AFSNIT 107-2-01, SRAF 1962/DB 16/87, CEE 7/16 (Non-Polarized) |  |
|---|
| Connector Standards | IEC 60320 (320) C-13, C-19, C-5, C-7, C-15, Unterminated |
|---|
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) |
|---|
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere |
|---|
| Material | PVC, Jacket Color Black, Temperature 70C |
|---|
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire) Color Code |
|---|
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm |
|---|
| Substances Compliance | REACH, RoHS Compliant |
|---|
|
| Additional Notes: |
Power cords are black as standard color. Power cords in white or gray are special order. Custom length and shielded power cords available. Terminated, custom stripping, hanked cords available. IEC 60320 C-15 120â°C connector available on some power cords. |
|
|
